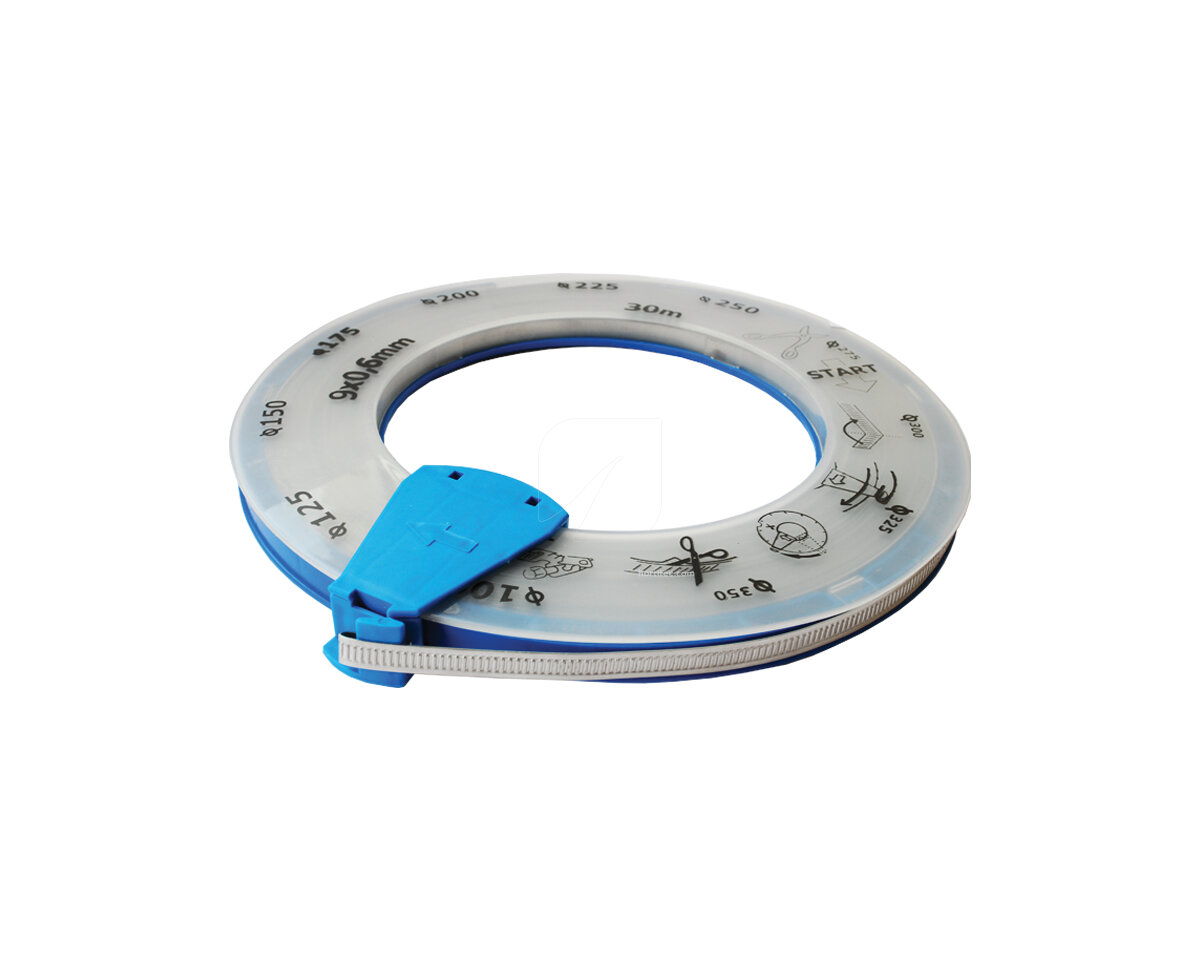

CBR 3000 Clamp

The CBR 3000 series clamps are plastic clamps that come rolled up in a plastic box (30 m roll). They are used by unrolling the required length, locking and cutting, resulting in a simple system. The clamps are tightened with screws.

A pair of scissors is all you need to get the required clamp length, as the plastic housing has a special design and marking.

The SU 50 locking device set (50 pieces) must be purchased separately.

Dimensions: 9 mm x 0.8 mm in a 30 m roll.

Application:

1. Fold the edge of the clamp.
2. Fix the folded edge of the band into the band holder.
3. Rotate the band holder up to the diameter mark on the housing.
4. Cut the band to fit the housing.
5. Fix the locking device into the clamp.

Dimensions: 9 mm x 0.8 mm.
