(AMP-2) pH and EC probe connector

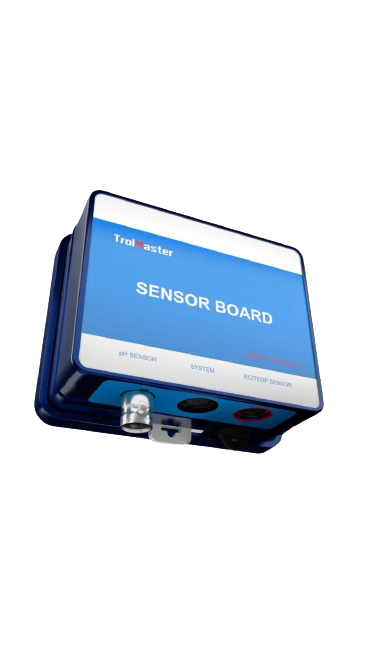

The AMP-2 module connects the Aqua-x to a set of precision pH/EC and temperature probes to continuously measure the pH/EC and temperature of the sampled water. The AMP-2 works with the TrolMaster PCT-1&2 and PPH-1&2 probes. Once connected to the Aqua-x, the AMP-2 will display sensor data on the Aqua-x and in the APP. Minimum and maximum “limits” can be set on the Aqua-x, providing 24/7 notification of pH/EC or temperatures that are out of limits.

• Easy-to-install DIN-style bracket
• BNC terminal (left) allows direct connection to pH sensor
• Mini DIN terminal (right) allows direct connection to EC/Temp sensor
• Mini DIN terminal (center) allows direct connection to Aqua-X controller

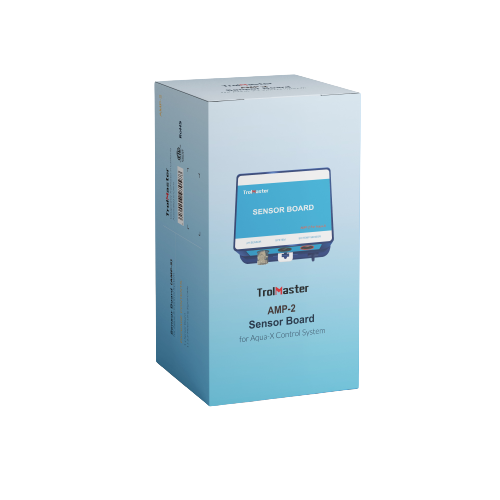

Contents:

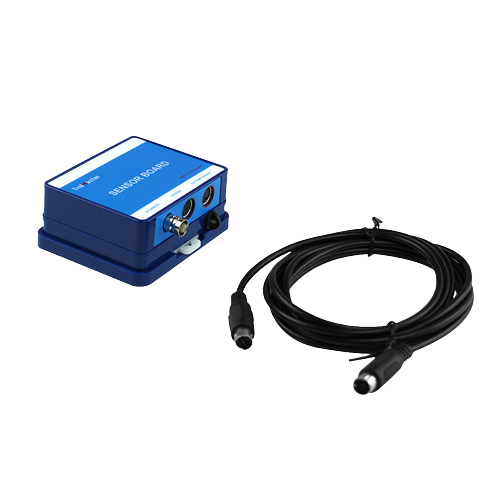

• 1 x Sensor Board
• 1 x 2.5-Meter Long Signal Cable

Specifications:

• Working Environments: Temperature 32-122°F, Humidity = 90%
• Package dimensions: 160mm(L) x 86mm(W) x 86mm(H).
