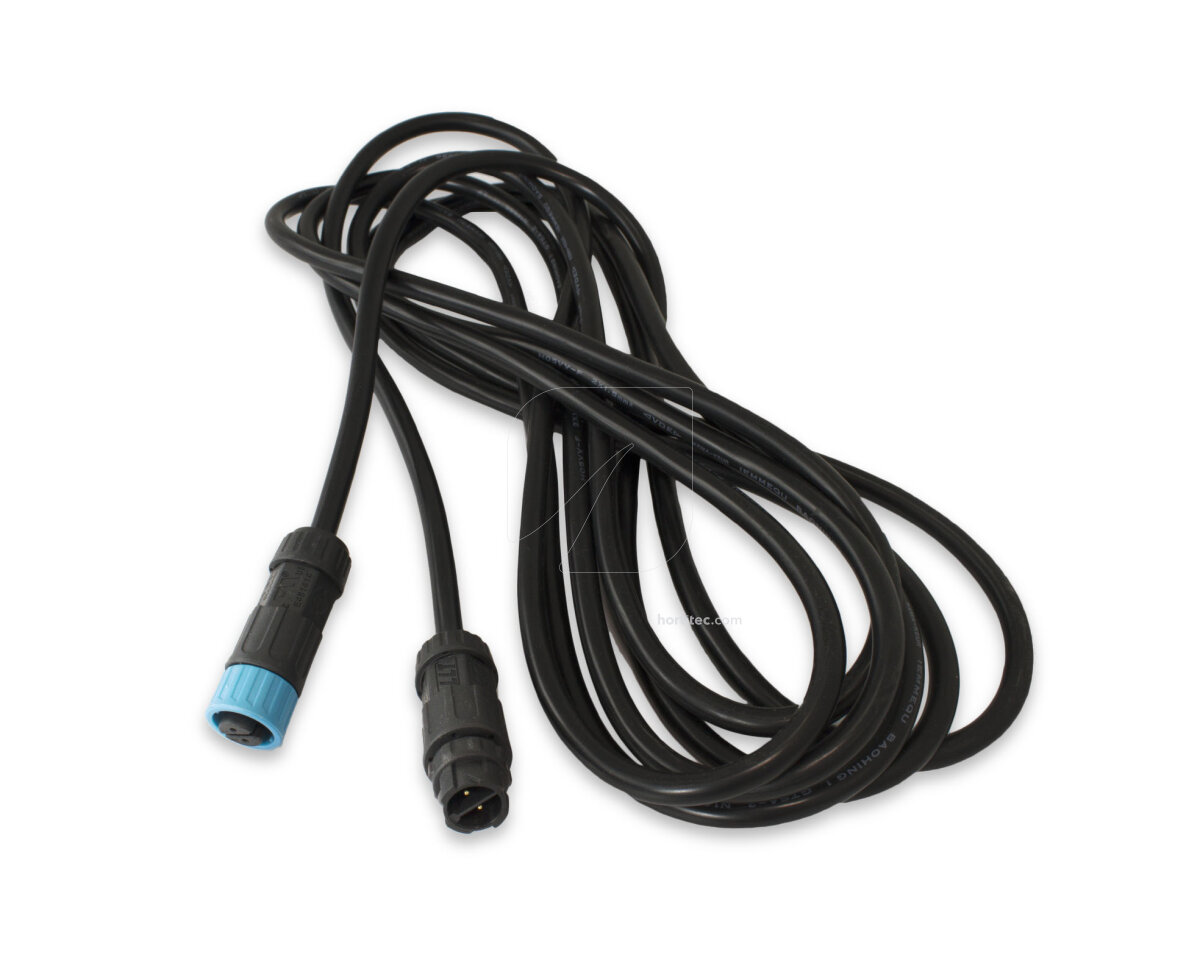

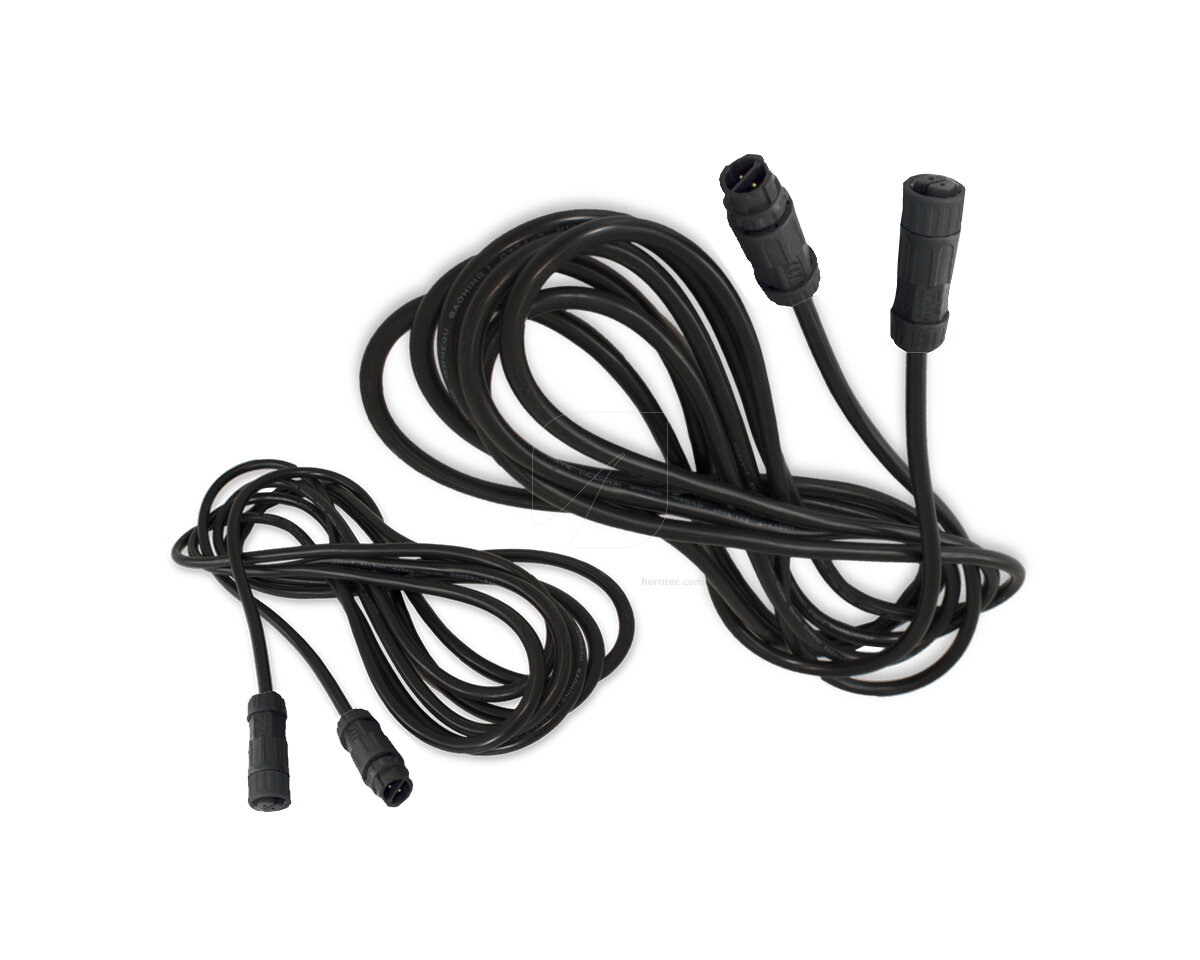

Extension cables 5 m Driver Remote Zeus (2 pcs)

To customize and optimize your growing space, you have at your disposal Lumatek extension cables with which you can connect your LED devices to the Lumatek controller, without worrying about the distance between your LED systems and the controller, since they have a length of 5 meters.

You will find a 5m extension power cable for LED controller and a 5m extension dimmer cable.

You can use the Zeus Driver Remote extension cables (2 pcs) with:

• Lumatek Zeus 600 w led system
• Lumatek zeus 465 w pro compact 2.7 led system

To use the driver away from the structure, one from Zeus is required.

Specifications

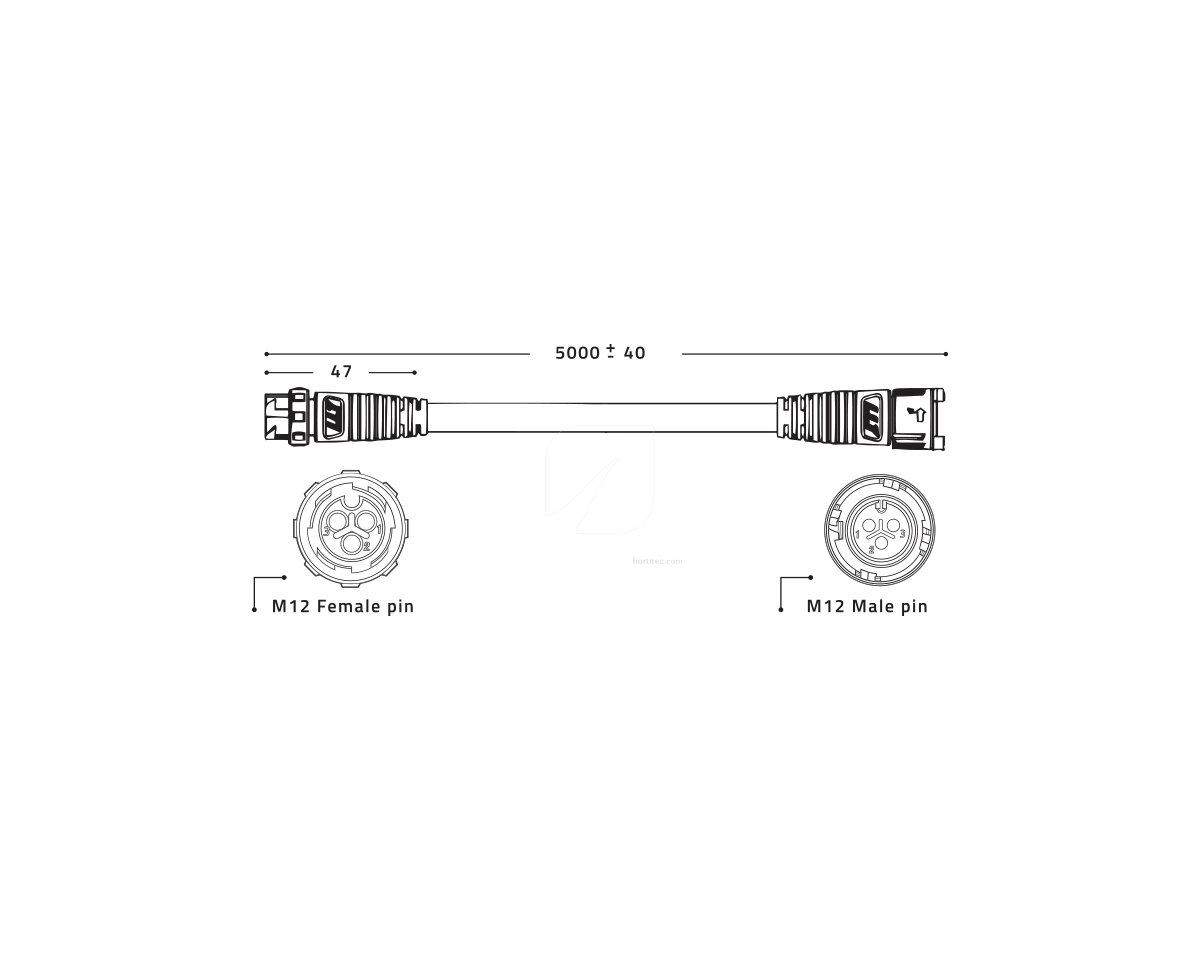

5m extension power cable for controller LED

• The withstand voltage between any two poles is 500VAC, 2mA.
• The withstand voltage between the outer sheath and the electrode is 500VAC, 2mA.
• Insulation resistance: 100MΩ@100V
• Temperature resistance: 105℃
• Working temperature: -20℃ to 105℃
• Storage temperature: -25℃ to 105℃
• IP65
• RoHS compliant

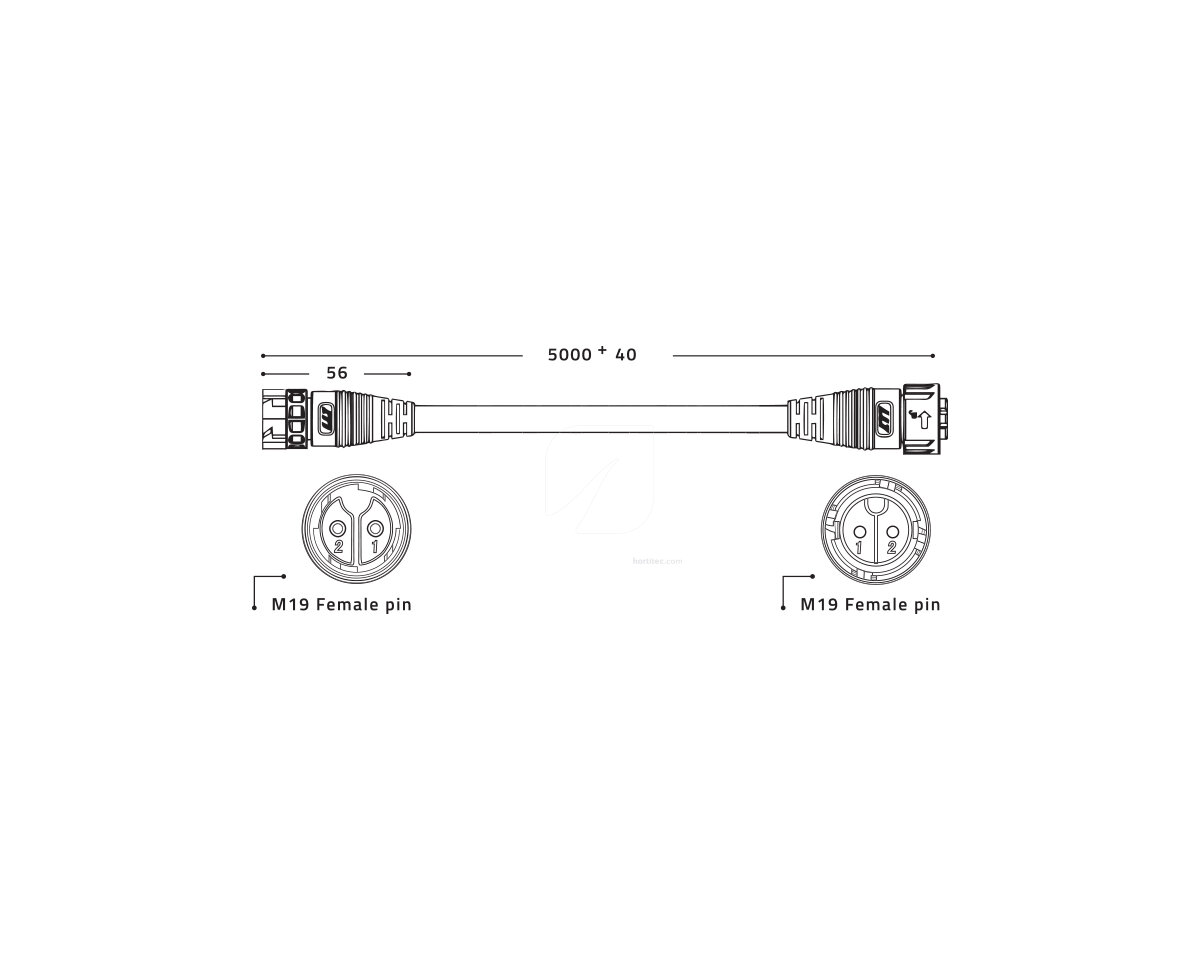

5M Extension Dimming Cable for LED Driver

• M19-2 Self-locking Male and Female Injection Molding with 5M Extension Cable
• The withstand voltage between any two poles is 500VAC, 2mA.
• Insulation resistance: 100MΩ@100V
• Temperature resistance: 105℃
• Working temperature: -20℃ to 105℃
• Storage temperature: -25℃ to 105℃
• IP65
• RoHS compliant

5M Extension Dimming Cable for LED Driver any is 500VAC, 1mA.

The withstand voltage between the outer cover and the electrode is 500VAC, 1mA.

Insulation resistance: 100MΩ @ 100V

Temperature resistance: 105℃

Working temperature: -20℃ to 105℃

Storage temperature: -25℃ to 105℃

RoHS compliant
