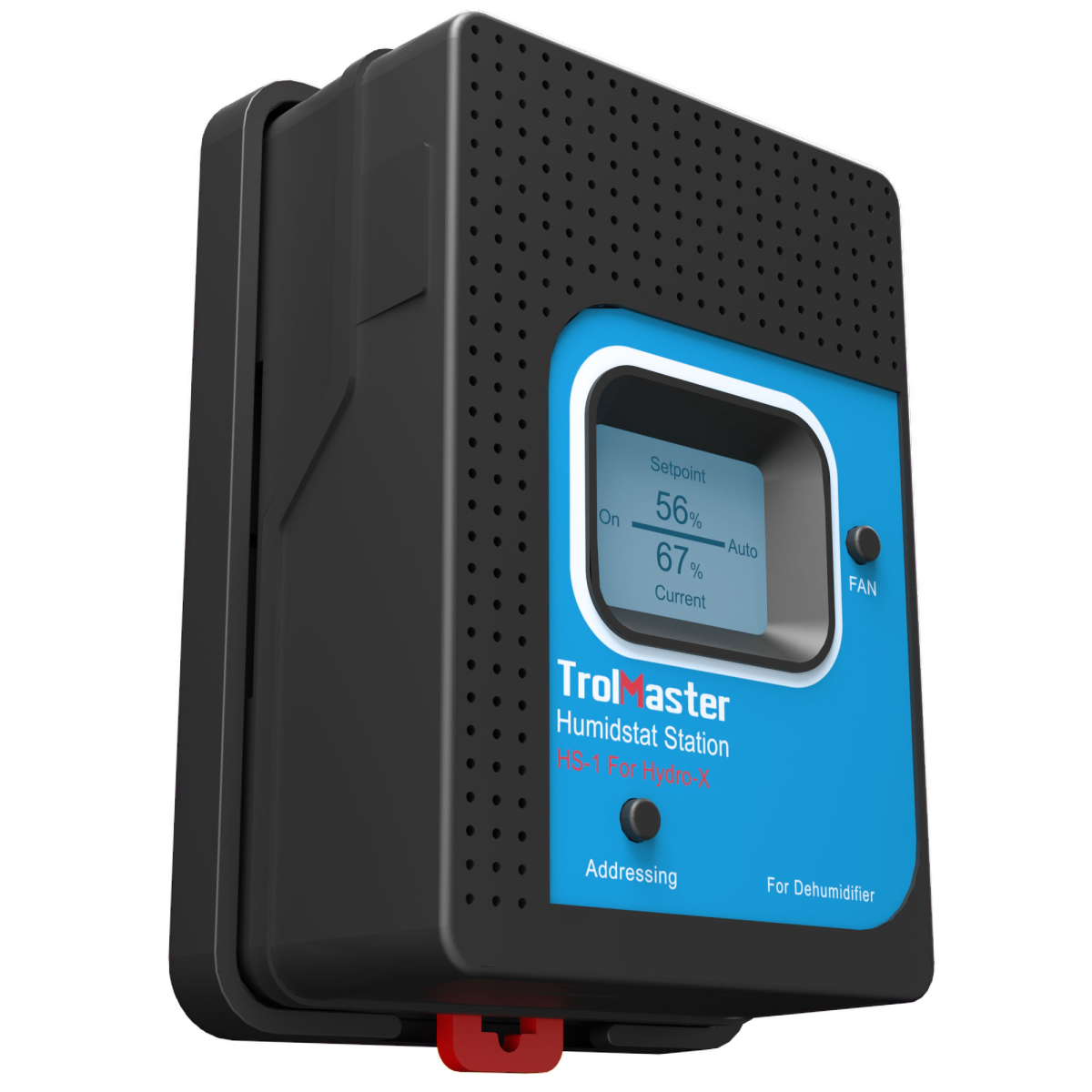

(HS-1) Dehumidifier humidistat station with 24v terminal

The TrolMaster HS-1 (Humidistat Station (HS-1) for Dehumidifier with 24v terminal) is used to control commercial dehumidifiers. Most larger/commercial dehumidifiers have a “low voltage” control option so that the dehumidifier can be controlled by an external humidistat. The HS-1 operates and is wired exactly like an external humidistat. The HS-1 is the best way to control your dehumidifiers by eliminating the need to control the high inrush current/amperage associated with dehumidifiers.

Features:

• LCD Display, Easy Operation

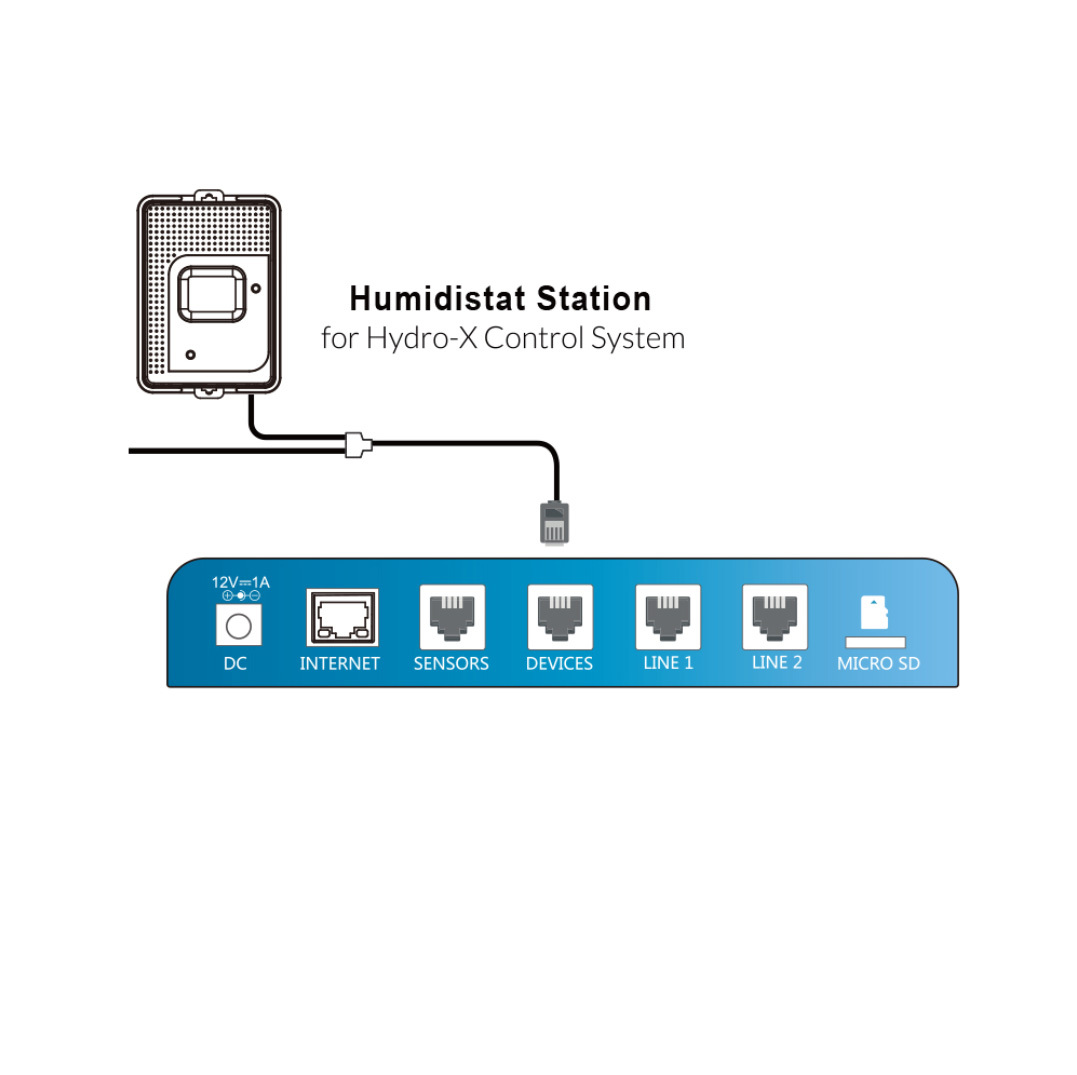

• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Specifications:

• Output voltage: 24V
• Maximum current: 1A
• Working environment: temperature -10ºC-50°C, humidity=90%
• Packaging dimensions: 160 mm (length) x 86 mm (width) x 86 mm (height)

Package contents:

• 1 Humidistat Station (HS-1)
• 1 RJ12 Cable 170 in.
• 1 RJ12 Cable 121 cm
• 1 RJ12 T-Splitter
