Under Canopy LED

PRODUCT SUBJECT TO MONITORING OF RRP €399. A LOWER RRP MAY LEAD TO A CHANGE IN THE CONDITIONS OF SALE AND CONSEQUENTLY THE CONDITIONS OF COLLABORATION.

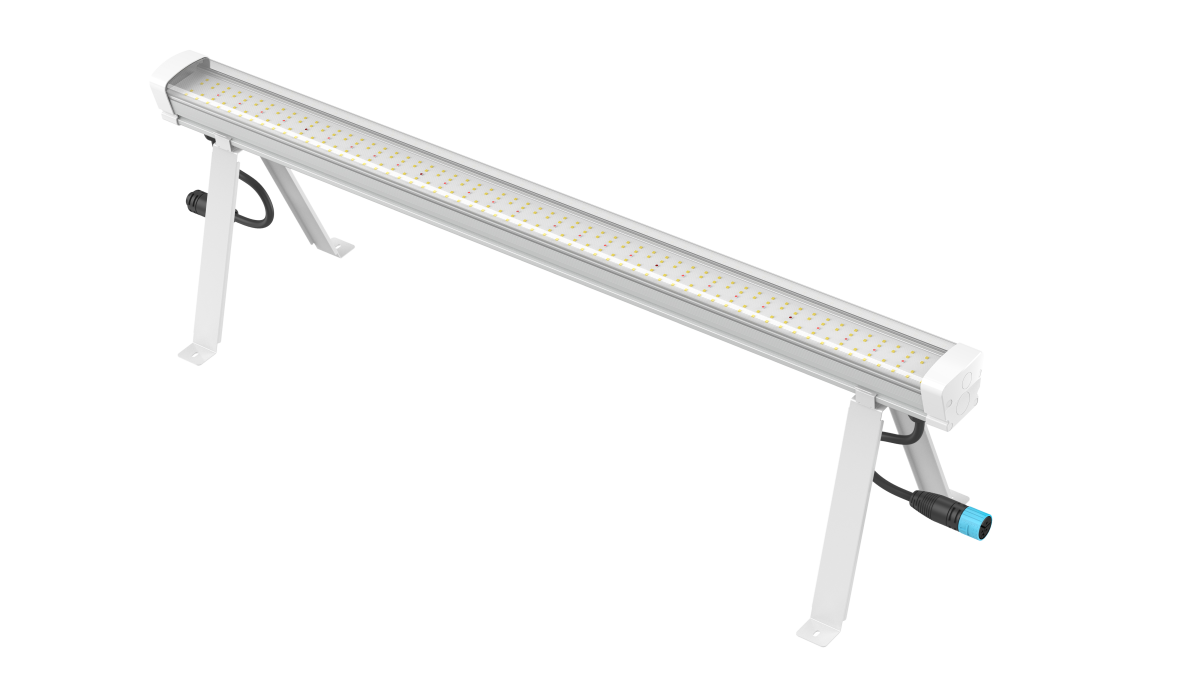

The UNDER CANOPY LED is a specialized lighting device for horticultural environments and agricultural projects, designed with high energy efficiency and ease of installation. With a robust and versatile design, this system optimizes lighting in controlled spaces under specific conditions.

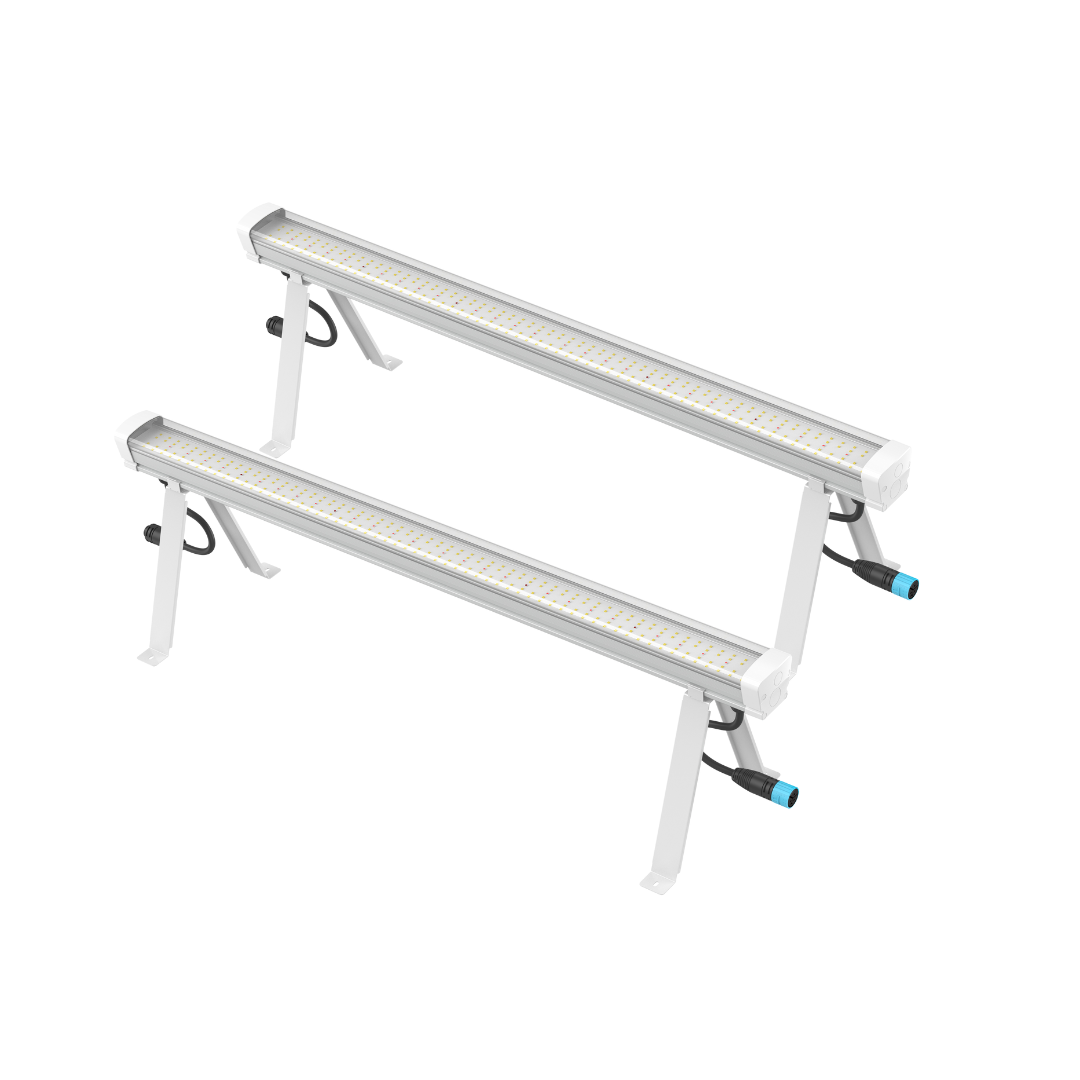

2 UNITS PER BOX.

Main Technical Specifications:

• Nominal Power: 120 W (±5%).
• System Efficiency: 2.7 µmol/J @220V.
• Photon Output (PPF): 324 µmol/s.
• Current Range:
  • 1.2 A @ 100V
  • 0.43 A @ 277V
• Heat Generation: 409.2 BTU/h.
• Input Voltage: 100-240 VAC / 100-277 VAC, 50-60 Hz.
• Insulation Class: Class I.
• Power Factor: >0.9.
• Dimerization: 0-10V.
• IP Rating: IP65, dustproof and water.

Dimensions and Weight:

• Dimensions: 1148 x 82 x 72 mm.
• Packaging:
  • 1 unit per box.
  • Box dimensions: 1230 x 200 x 170 mm.

Conditions of Operation:

• Operating Temperature: 0°C to 40°C (32°F to 104°F), with a maximum relative humidity of 95%.
• Storage Temperature: -40°C to 70°C (-40°F to 158°F), with a maximum relative humidity of 85%.
• Warranty: 3 years.

Design and Materials:

• Housing: Made of aluminum for high durability and efficient heat dissipation.
• Optics: High transmission polycarbonate material.
• Radiation Angle: 120° for optimal coverage.

Coverage Capabilities:

• Coverage Area: 0.9 m x 1.2 m (3’ x 4’) 4’).
• Recommended Height: 45 cm (18”) from lamp to canopy.
• Lighting Efficiency (PPFD test at 45 cm):
  • Average: 175 µmol/m²/s.
  • Maximum: 347 µmol/m²/s.
  • Minimum: 82 µmol/m²/s.

Additional Features:

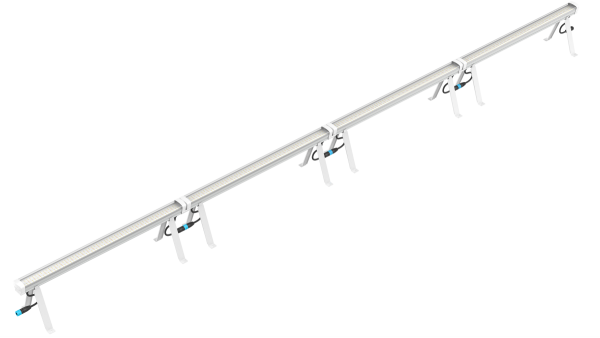

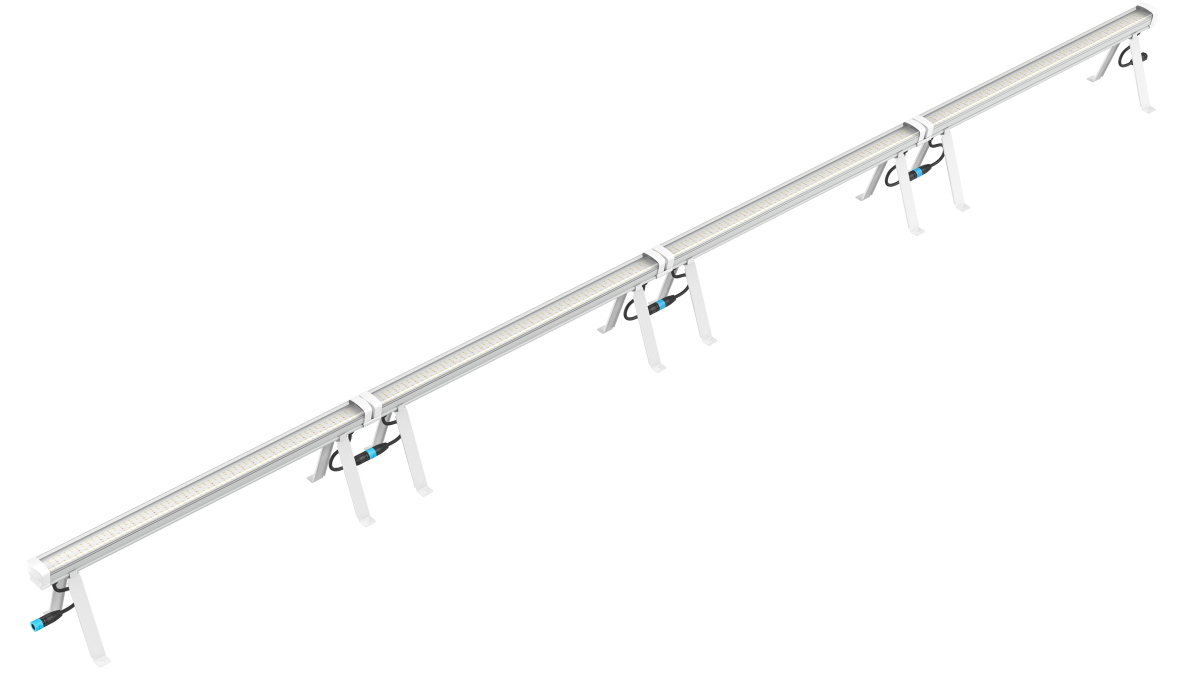

• Chain Connection:
  • 7 units at 120V.
  • 15 units at 240V.
  • 17 units at 277V.
• Accessories Included:
  • 2 fixing brackets to the 25cm high floor.
  • Interconnection clips.
  • Standard EU plug.
• Passive Cooling: No fans, reducing noise and maintenance.
